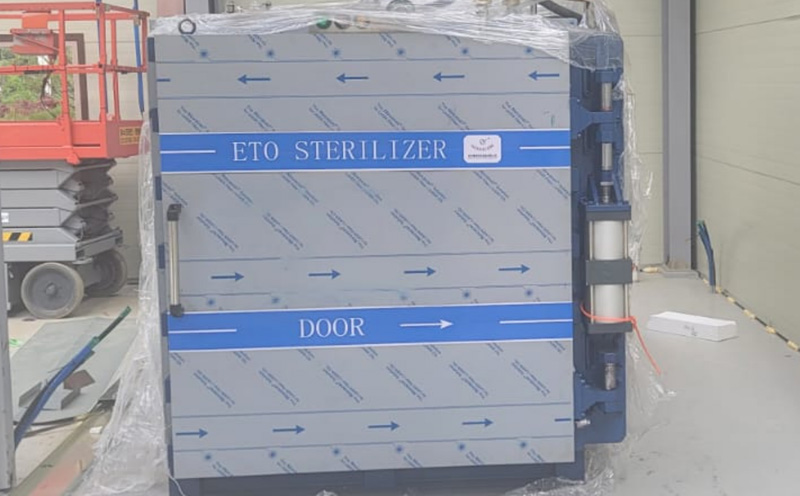

| cabinet volume | 6m³ |
| cabinet size | inside：Length x Width x Height =2600*1350*1700 |
| overall size | outer：Length x Width x Height =3200*2100*2300 |
| Chamber pressure range | design pressure:-95kpa ~+80kpa; suggest running pressure:-90kpa ~+60kpa |
| body (main part ) | 1、cabinet：stainless steel SUS304，δ=8mm |
| 2、water jacket：stainless steel #304 δ=6mm | |
| 3、 housing：stainless steel | |
| 4、foot ：U- bar steel 14#/Q235 | |
| 5、foot support ：steel sheet 10/Q235 | |
| 6、insulating layer ：ceramic fiber | |
| door (mian part) | 1、door ：stainless steel : SUS304，δ=8mm |
| 2、door frame：rectangular steel 120*60/Q235 | |
| 3、door water jacket：stainless steel δ=6mm | |
| 4、 door seal flange：stainless steel | |
| 5. Door seal way: air internal feeding | |
| 6、 housing：stainless steel | |
| 7、insulating layer：ceramic fiber | |
| heating components (main part) | 1、water tank installation way: wall mounted |
| 2、heating water tank ：stainless steel | |
| 3、housing of tank ：carbon steel with power paint | |
| 4、electronic heater ： stainless steel electrical heating pipe | |
| EO vaporizer | 1. Vaporizer installation mode: Wall mounted or floor mounted |
| 2、EO coil pipe：stainless steel pipe | |
| 3. EO vaporizer housing: stainless steel | |
| 4. N2 feeding function: is optional but charge separately | |
| 5. With rotor flow detection function | |
| 6、with vaporizer water temperature detetion function and vaporizer front gas pressure function ; charge separately | |
| harmless cycling system | It is equipped with exhause flange interface, which can be futher expanded. The blind flange plate is carbon steel, inner gasket I silica gel pad and he fan inlet is equipped with stainless steel filter screen cover. |
| product loading way | Suggest the sterilizer is set in a pit to make the bottom of the internal chamber and the floor is even. We provide the device to connect the chamber bottom to ground. Suggest pallet loading way . |
| Description | Specification & Parameter |
| heating pipe | 3*9kw/AC380V 3P |
| vaccum pump | 3.85kw/AC380V 3P/GP 50HZ |
| hot water heating circulating pump | 0.75Kw/AC380V 3P 50HZ |
| safety valve | 0.085Mpa |
| steam generator | 6KW/AC380V 50HZ |
| steam filter | standard congifuration |
| air compressor | 1.5Kw/AC380V 3P 50HZ |
| air filter | standard congifuration |
| EO pipes | standard congifuration |
| EO bottle joints | standard congifuration |
| EO filter | standard congifuration |
| Door open/close cylinder, door lock cylinder | standard congifuration |
| pneumatic control box | ST-P51XXL/2N |
| pneumatic ball valve |
humidifying valve: 0.5" screwed joints , vacuum valve ：1.5inch screwed joints Feeding EO valve：0.5inch screwed joints Feeding N2 valve：0.5inch screwed joints air release valve：1 inch 3 ways screwed joints cabinet heating valve:0.5inch screwed joints condaensate drainage valve : 0.5inch screwed joints |
| EO electric scale |
1、range ：300Kg; 600*800*150mm 2、material ：stainless steel plate； 3、support RS485 communication function； |
